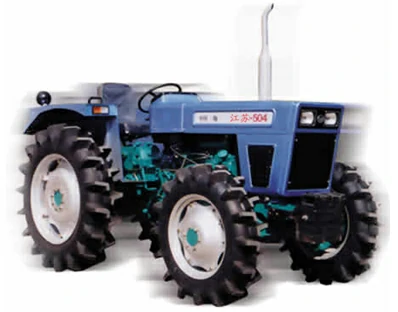

CAGRI 504
| Model | CAGRI 504 | ||||||||||
| Type | Four wheel drive | ||||||||||
| Overall Dimensions | Total length (mm) | 3590 | |||||||||
| Total width (mm) | 1660 | ||||||||||
| Total height (mm) | 1780 | ||||||||||
| Wheel base (mm) | 2050 | ||||||||||
| Wheel tread | Front (mm) | 1420, 1520(Normal) | |||||||||
| Rear (mm) | 1250-1650， 1350(Normal) | ||||||||||
| Ground clearance (mm) | 360 | ||||||||||
| Structural weight (kg) | 2280 | ||||||||||
| Engine | Model | 495T or 495A | |||||||||
| Type | Vertical, water cooled, four stroke | ||||||||||
| Power/Speed (kw/r/min) | 35.3 / 2000 | ||||||||||
| Displacement | 3.26 | ||||||||||
| Fuel | Diesel oil | ||||||||||
| Fuel tank capacity (L) | 53 | ||||||||||
| Tire | Front | 9.50-24 | |||||||||
| Rear | 11-32 | ||||||||||
| Clutch | Double-acting | ||||||||||
| Brake | Disk brake | ||||||||||
| Gearbox | Double shaft | ||||||||||
| Steering | Full hydraulic | ||||||||||
| Gears | (4+1)*2 | ||||||||||
| Travel Speeds | Forward (km/h) | gear 1 | gear 2 | gear 3 | gear 4 | gear 5 | gear 6 | gear 7 | gear 8 | ||
| 2.12 | 3.19 | 5.21 | 7.03 | 8.48 | 12.76 | 20.84 | 28.12 | ||||
| Reverse (km/h) | gear 1 | gear 2 | |||||||||
| 2.79 | 11.16 | ||||||||||
| PTO | Speed (r/min) | 734, 978 OR 540 | |||||||||
| Spline size | 8-38*32.8*6 OR 6-34.88*28.98*8.7 | ||||||||||
