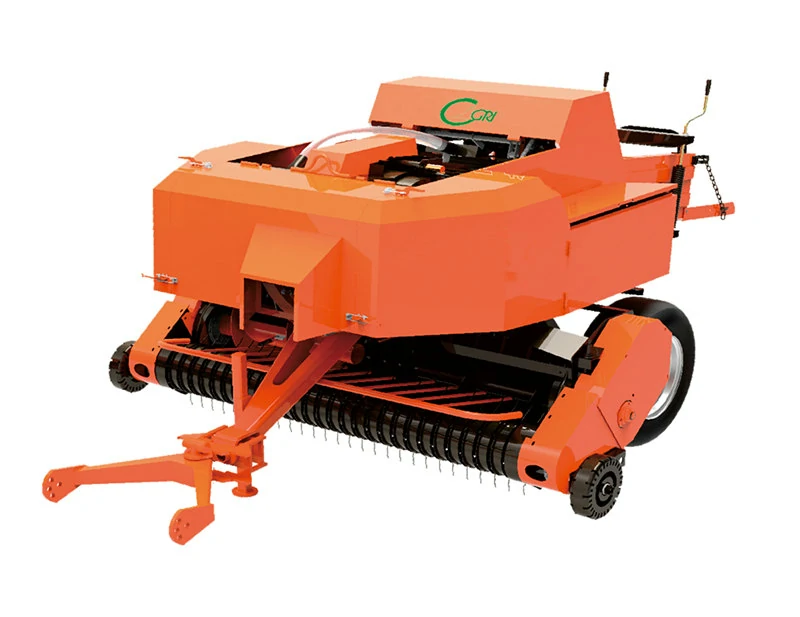

Square Baler CAYQ1950
Features:
- Flexible turning, high working efficiency and fast baling.
- The piston of blade disc is full sealed and dust-proof to achieve good performance under the harsh conditions of heavy sand-wind.
- The knots are made in Germany, with the advantages of higher stability, high success knotting efficiency and longer service time.
- The machine is equipped with three safety devices, which will give the machine more protection.
- Using Spring Finger pick-up to keep high working efficiency.
| Model | CAYQ1950/9YFQ-2210 | |
| Working Pick-up Width | CAYQ1950: 1950mm | |
| 9YFQ-2210: 2210mm | ||
| Working Efficiency | 0.6-1.3ha/h | |
| Feeding Device | Structure | Crank rocker type; Four Feed fork |
| Overload Protection | Safety bolt | |
| Baling Room | Cross-section (Width*Height) | 360*460mm2 |
| Bale Density | 120-180kg/m3 | |
| Bale Length | 310-1300mm | |
| Spiral Feeding Device | Rotating Speed | 313r/min |
| Overload Protection | Belt slipping | |
| Auger Diameter | Outside diameter *320mm | |
| Compression Device | Working Rate | 100times/per min |
| Working Distance | 550mm | |
| Working Pick-up Width | ≥25.7kw(35hp) | |
| Baling Structure | Number of Baling Rope | Six Coils |
| Number of Knots | Two Sets | |
| Apply to | Wheat Stalk, Straw, Cotton Stalk, Canola Stalk, Etc… | |
