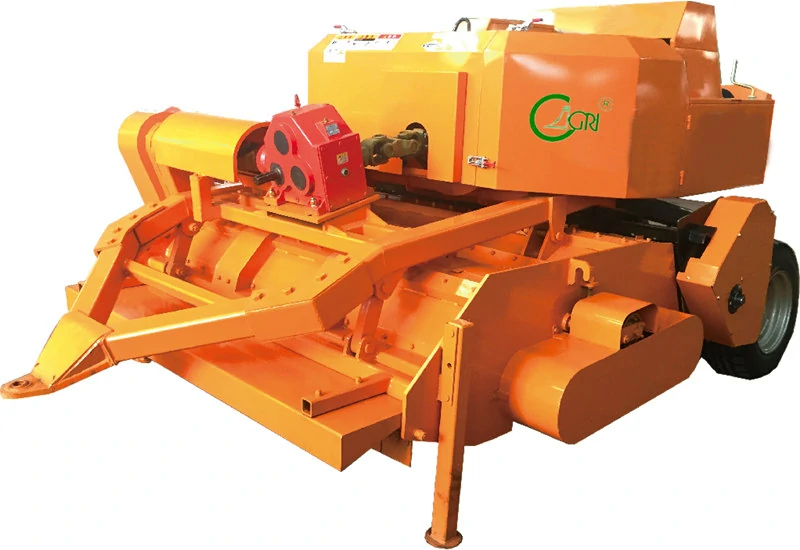

Square Baler 9YFQ-2210S
Feature:
- Flexible turning, high working efficiency and fast baling.
- The piston of blade disc is full sealed and dust-proof to achieve good performance under the harsh conditions of heavy sand-wind.
- The knots are made in Germany, with the advantages of higher stability, high success knotting efficiency and longer service time.
- The machine is equipped with three safety devices, which will give the machine more protection.
- The Crushing System is enhanced by double threshing cylinders with 64 blades to crush the straws more thoroughly.
- The speed of rotating blades is increased to crush straws easily.
- After crushing, the straws could be fed to cows and sheep directly.
Model | 9YFQ-2210S/CAYQ1950IIA | |
Working Pick-up Width | CAYQ1950IIA: 1950mm | |
9YFQ-2210S: 2210mm | ||
Working Efficiency | 0.5-0.6ha/h | |
Crusher | Number of Blades | Two lines of Blades; The Front:56PCS; The Back:64PCS |
Shredding Length | <100mm | |
Stubble Height | <50mm | |
Blade Shape | Curved | |
Feeding Device | Structure | Crank rocker type; Four Feed fork |
Overload Protection | Safety bolt | |
Baling Room | Cross-section (Width*Height) | 360*460mm2 |
Bale Density | 120-180kg/m3 | |
Bale Length | 310-1300mm | |
Spiral Feeding Device | Rotating Speed | 313r/min |
Overload Protection | Belt slipping | |
Auger Diameter | Outside diameter *320mm | |
Compression Device | Working Rate | 100times/per min |
Working Distance | 550mm | |
Working Pick-up Width | ≥55.1kw(75hp) | |
Baling Structure | Number of Baling Rope | Six Coils |
Number of Knots | Two Sets | |
Apply to | Standing or Lodging Corn Stalk, Wheat Stalk, Straw, Reed, Cotton Stalk, Etc… |
