Feature:

  1. Flexible turning, high working efficiency and fast baling.
  2.  The piston of blade disc is full sealed and dust-proof to achieve good performance under the harsh conditions of heavy sand-wind.
  3. The knots are made in Germany, with the advantages of higher stability, high success knotting efficiency and longer service time.
  4. The machine is equipped with three safety devices, which will give the machine more protection.
  5. Equipped with Crush System which has one shaft of blades, crushing and baling the straws easily.
  6. Under different operating conditions, the blades can be charged accordingly.
  7. Solve the stubble problem when baling the wheat straws.
  8. The corn straws scattered in the furrows can be picked up and baled.

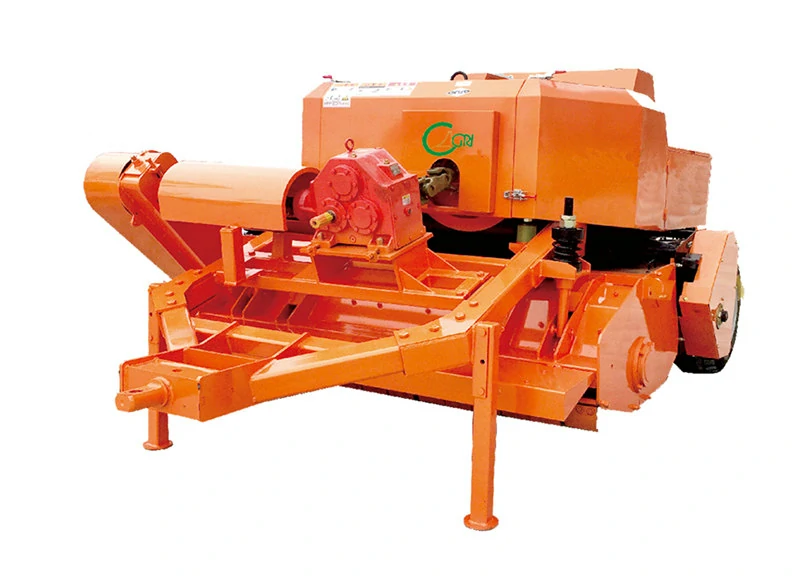

Model 9YFQ-1950D/9YFQ-2210D
Working Pick-up Width 9YFQ-1950D: 1950mm
9YFQ-2210D: 2210mm
Working Efficiency 0.5-0.6ha/h
Crusher Number of Blades One line of Blades; 56PCS
Shredding Length <100mm
Stubble Height <50mm
Blade Shape Curved
Feeding Device Structure Crank rocker type; Four Feed fork
Overload Protection Safety bolt
Baling Room Cross-section (Width*Height) 360*460mm2
Bale Density 120-180kg/m3
Bale Length 310-1300mm
Spiral Feeding Device Rotating Speed 313r/min
Overload Protection Belt slipping
Auger Diameter Outside diameter *320mm
Compression Device Working Rate 100times/per min
Working Distance 550mm
Working Pick-up Width ≥55.1kw(75hp)
Baling Structure Number of Baling Rope Six Coils
Number of Knots Two Sets
Apply to Standing or Lodging Corn Stalk, Wheat Stalk, Straw, Reed,   Cotton Stalk, Etc…
