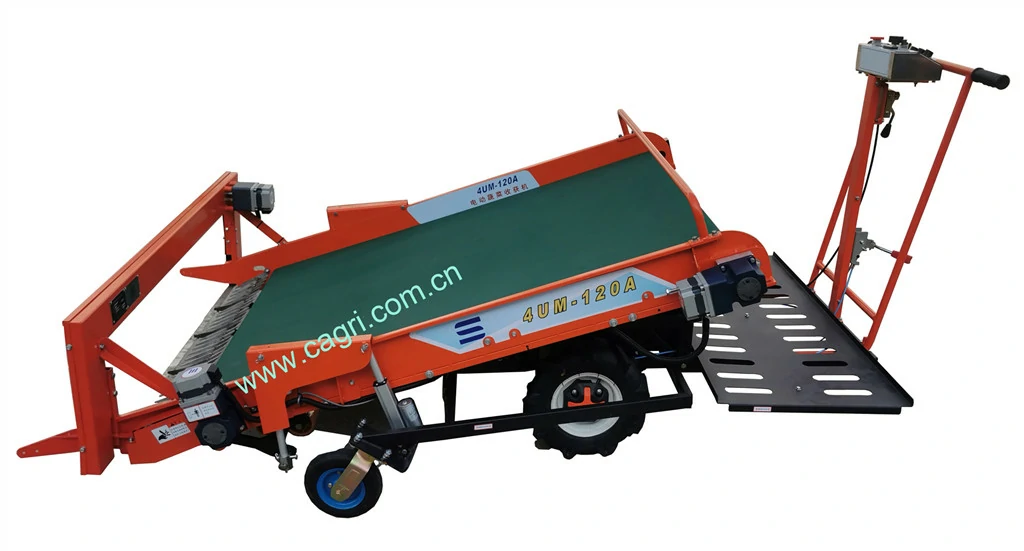

Leaf Vegetable Harvester (Cut above/underthe soil level)
Machine for harvesting leaf vegetable(Spinach, Pea-sprouts, Lettuce, Leek, Kangkong, Chyesim, Kai-lan, Small Cabbage, Coriander, Crowndaisy, Artemisia selengensisEtc….)
Features:
l Battery powered is quiet and environmentally friendly;
l There are 4individual motors for cutting, conveyor, walking & cutting head lift
l Wheel track width fixed at 800mm, and run on top of the bed;
l Designed for harvesting in open ground OR very compact areas , such as greenhouses.
l The special designed cutting blade can go under the soil level 20mm,the vegetable can kept complete after harvesting;
l Special important for harvesting leafy vegetables with roots remains;
Main parameters:
| Model | 4UM-120A |
| Structure | Self-Propelled Walk Behind |
| Dimension(L×W×H)（mm） | 2460×1500×1200 |
| Operation weight(kg) | 200 |
| Total Power | 1kw (4Motors) |
| Battery | Lithium iron phosphate Battery |
| Battery Capacity（AhV） | 48V 40Ah |
| Charging Hours（h） | 4 |
| Working Hour-Full charge | 6~8hours |
| Driving Method | Rear-wheel drive |
| Brake | Parking brake |
| Cutting Blade Type | Reciprocating saw Blade |
| Harvesting Width（mm） | 1200 |
| Harvesting head height Range（mm） | -20 ~ 160 |
| Conveyor Belt Width | 1200mm |
| Steering Wheel Track | 800mm |
| Driving Wheel Track | 800mm |
| Minimum Ground Clearance | 100mm |
| Operating Speed（m/s） | 0.05-0.15 |
| Productivity（ha/h） | 0.02-0.065 |
