Combine Harvester CAG-128
Jiangsu Wallong-Hsin Machinery Engineering Corp. Ltd. is a state-owned company, we are subsidiary of China National Machinery Industry Corporation (SINOMACH Group), under the management of Chinese Academy of Agricultural Mechanization Sciences (CAAMS). We have specialized in agricultural machinery for more than 20 years.
We have professional engineer team and experienced pre-sale and after-sale technicians. Our products has helped thousands farmers all over the world.

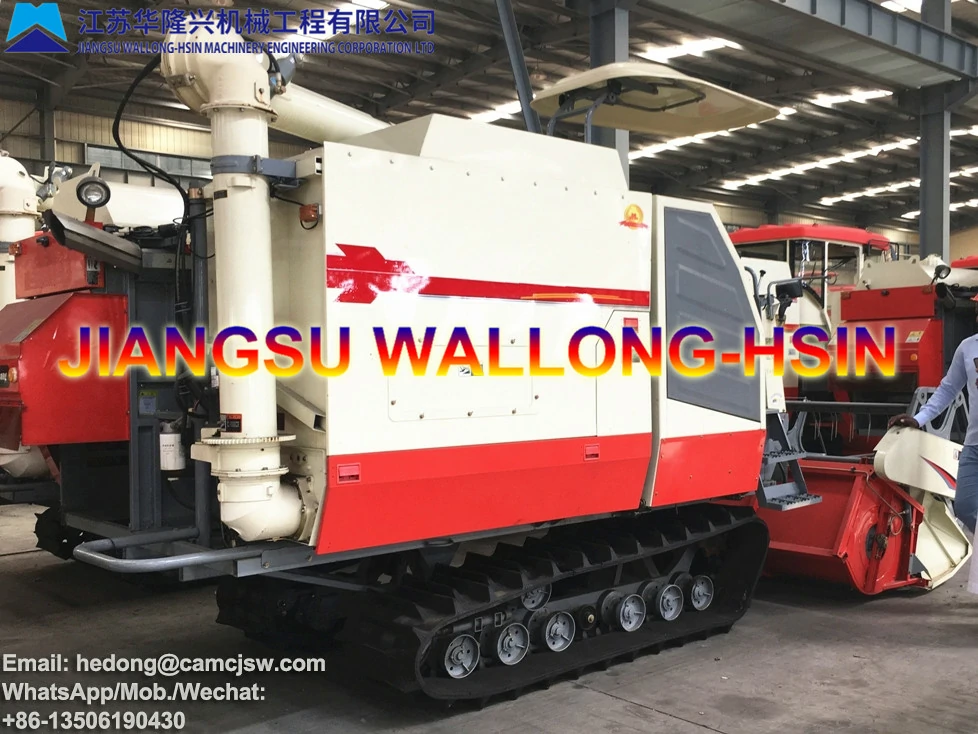

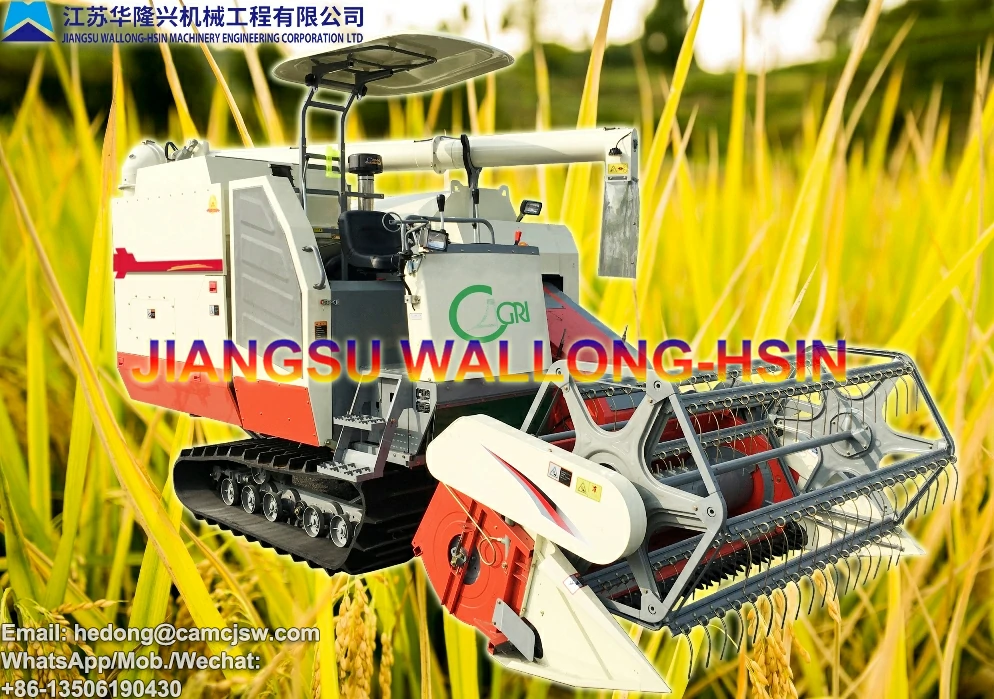

CAG-128 is new generation of full-feed combine harvester with the characteristics of comfortable driving, low noise, high reliability, excellent operating performance, and strong paddy field passing ability.
The threshing system is Spiked Tooth Axial Flow. The combine harvester is mainly used for the harvesting of rice and wheat. With optional accessories, it can also be used to harvest soybean and maize.
The horse power of diesel engine: 128hp; cutting width: 2500mm; Hydrostatic Transmission(HST); Thrust Wheel No.: 6 pairs; The width of rubber track: 500mm / 550mm; Top swing type discharging pipe; AC Cabin is optional.
| Model | CAG-128 | ||
| Type | Crawler Self-propelled Full-feed | ||
| Engine | Type | Water-cooled, 4stroke, Direct Injection, Turbocharged Vertical Diesel | |
| Rated Power(kw/ps/rpm) | 88.9 / 120 / 2600 | ||
| Starting system | Electric Start | ||
| Dimensions | Overall Length(mm) | 5375 | |
| Overall Width(mm) | 2750 | ||
| Overall Height(mm) | 2960 | ||
| Feed Capacity(kg/s) | 8 | ||
| Fuel Tank Capacity(L) | 210 | ||
| Fuel Consumption(kg/ha) | ≤36 | ||
| Min. Ground Clearance(mm) | 330 | ||
| Operation Weight(kg) | 3750 | ||
| Driving System | Crawlers | Rubber Track | 500 x 90 x 56(550 x 90 x 56 optional) |
| Track Gauge | 1150mm | ||
| Transmission | HST Capacity | 45cc | |
| Working Speed(km/h) | Lower: 0-4.45 | ||
| Medium:0-6.07 | |||
| High: 0-8.95 | |||
| Cutting | Pickup Reel Diameter(mm) | 980 | |
| Height Adjustment | Hydraulic | ||
| Cutting Width(mm) | 2500(3000 Optional) | ||
| Threshing Cylinder |
Quantity | 1 | |
| Diameter x Length(mm) | Φ640×2220 | ||
| Grain Tank(m³) | 1.5m³ | ||
| Grain Unloading | High Positioned, Swing Type Discharge Auger | ||
| Operation Efficiency Estimated Value (ha/ hour) | 0.6-1.0 | ||
| Stalk Chopper | Optional | ||
* Specifications are subject to change without prior notice.
