Combine Harvester CAG-100+S
Jiangsu Wallong-Hsin Machinery Engineering Corp. Ltd. is a state-owned company, we are subsidiary of China National Machinery Industry Corporation (SINOMACH), under the management of Chinese Academy of Agricultural Mechanization Sciences (CAAMS). We have specialized in agricultural machinery for more than 20 years.
We have professional engineer team and experienced pre-sale and after-sale technicians. Our products has helped thousands farmers all over the world.
Combine Harvester CAG-100+S is new generation of full-feed combine harvester with the characteristics of comfortable driving, low noise, high reliability, excellent operating performance, and strong paddy field passing ability.
The grain in the grain tank will be collected manually, the wide operating platform can meet the needs of two operators to collect grain at the same time.
Compared with products of the same type, the advantages of CAG100+S mainly include:
1. Multi-corps: CAG100+ is mainly used for the harvesting of rice and wheat, and can also be used to harvest soybean and corn(need to change to corn header, row distance: 600mm/750mm, optional).
2. Strong adaptability: Because of the rubber track chassis, the machine has an excellent performance in both dry and muddy field.
3. Lower loss rate and impurity rate: The threshing cylinder is longer among the similar products, the rice and wheat can be fully threshed, the loss rate is low, and the larger area of vibration screen make the grain harvested cleaner.
4. High working efficiency: The Turbo Direct Injection diesel engine is powerful and reliable; The combination of high capacity HST and heavy duty gearbox ensure the smooth power output.
Model | CAG-100+ | ||
Type | Crawler Self-propelled Full-feed | ||
Engine | Type | Water-cooled, 4stroke, Direct Injection, Turbocharged Vertical Diesel | |
Rated Power(kw/ps/rpm) | 75 / 102 / 2400 | ||
Starting system | Electric Start | ||
Dimensions | Overall Length(mm) | 5080 | |
Overall Width(mm) | 2600 | ||
Overall Height(mm) | 2705 | ||
Feed Capacity(kg/s) | 6 | ||
Fuel Tank Capacity(L) | 210 | ||
Fuel Consumption(kg/ha) | ≤30 | ||
Min. Ground Clearance(mm) | 330 | ||
Operation Weight(kg) | 3100 | ||
Driving System | Crawlers | Rubber Track | 500 x 90 x 53 |
Track Gauge | 1250mm | ||
Transmission | HST Capacity | 45cc | |
Working Speed(km/h) | Lower: 0-4.45 | ||
Medium:0-6.07 | |||
High: 0-7.6 | |||
Cutting | Pickup Reel Diameter(mm) | 900 | |
Height Adjustment | Hydraulic | ||
Cutting Width(mm) | 2200(2000/2500 Optional) | ||
Threshing/ Separating |
Quantity | 1 | |
Diameter x Length(mm) | Φ640×2041 | ||
Grain Tank | Hopper Type | ||
Grain Tank Capacity(kg) | 300 | ||
Discharge | Manually Collecting | ||
Operation Effeciency Estimated Value (ha/ hour) | 0.4-0.8 |
* Specifications are subject to change without prior notice.
Related products
-
COMBINE HARVESTER
Leaf Vegetable Harvester
-
COMBINE HARVESTER

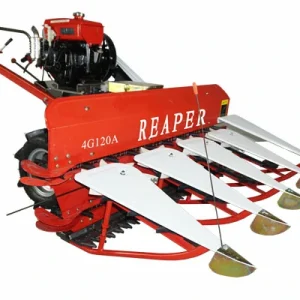

Reaper 4G120A
-
