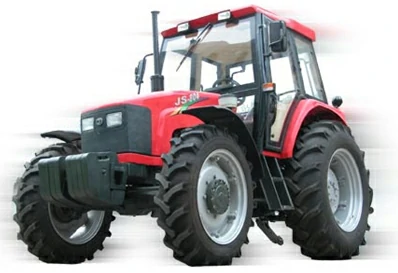

CAGRI 804
| Model | CAGRI 804 | |||||
| Type | 4×4 4WD | |||||
| Overall Dimensions | Total length (mm) | 4200 | ||||
| Total width (mm) | 1992 | |||||
| Total height (mm) | 2050 | |||||
| Wheel base (mm) | 2820 | |||||
| Wheel tread | Front (mm) | 1648~1926(normal 1730）or 1630~1960(normal 1730) | ||||
| Rear (mm) | 1470~1870(normal 1650) | |||||
| Ground clearance (mm) | 426 (front axle) | |||||
| Wheel base (mm) | 2306 | |||||
| Structural weight (kg) | 3260 | |||||
| Rated traction(kN) | 18.8 | |||||
| Engine | Model | LRC4105T7、LRC4105T8、(LR4105ZT4) | ||||
| Type | Vertical, water cooled, four stroke, direct injection | |||||
| Power/Speed (kw/r/min) | 58.8/2300 | |||||
| Fuel | Diesel oil | |||||
| Specific fuel consumption(at rated conditions) | ≤238 | |||||
| Tire | Front | 11.2-28 | ||||
| Rear | 16.9-34、13.6-38 | |||||
| Clutch | Dry、single-plate, Double acting | |||||
| Brake | Oil bathe, double plate, manpower and hydraulic pressure pedal control | |||||
| Gearbox | Double axis, meshed sleeve shift, synchromesh transmission (optional) | |||||
| Steering | Full hydraulic | |||||
| Gears | Rated speed(normal/creeper) | |||||
| Travel Speeds | Forward (km/h) | gear | gear 1 | gear 2 | gear 3 | gear 4 |
| low | 2.19/0.42 | 3.14/0.63 | 5.22/1.05 | 7.52/1.46 | ||
| high | 9.61/0.42 | 13.79/2.72 | 22.9/4.18 | 32.92/6.58 | ||
| Reverse (km/h) | gear 1 | gear 2 | gear3 | gear4 | ||
| 3.06/0.62 | 4.39/0.88 | 22.99/4.18 | 32.92/6.58 | |||
| PTO Shaft Speed (r/min) | 540、720;720(optional),540、1000（optional) | |||||
| Max lifting forces at rear points of 610mm to lower link | 17.5 | |||||
