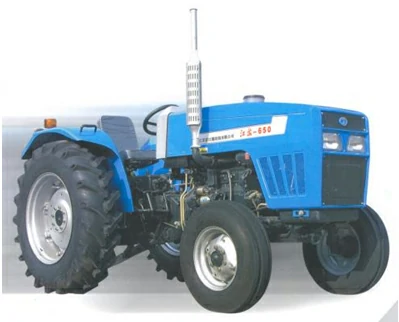

CAGRI 650
| Model | CAGRI 654 | |||||||||
| Type | Four wheel drive | |||||||||
| Overall Dimensions | Total length (mm) | 3825 | ||||||||
| Total width (mm) | 1830 | |||||||||
| Total height (mm) | 1800 | |||||||||
| Wheel base (mm) | 2115 | |||||||||
| Wheel tread | Front (mm) | (1420 ~ 1520), 1420(Normal) | ||||||||
| Rear (mm) | (1350 ~ 1650), 1450(Normal) | |||||||||
| Ground clearance (mm) | 390 | |||||||||
| Structural weight (kg) | 2420 | |||||||||
| Engine | Model | LR4105T7 | ||||||||
| Type | Vertical, water cooled, four stroke，direct infection | |||||||||
| Power/Speed (kw/r/min) | 48/2200 | |||||||||
| Displacement | 4.33 | |||||||||
| Fuel | Diesel oil | |||||||||
| Fuel tank capacity (L) | 70 | |||||||||
| Tire | Front | 11.2~24 | ||||||||
| Rear | 14.9~30 | |||||||||
| Clutch | Double-acting | |||||||||
| Brake | Disk brake | |||||||||
| Gearbox | Double shaft | |||||||||
| Steering | Full hydraulic | |||||||||
| Gears | (4+1)*2 | |||||||||
| Travel Speeds | Forward (km/h) | gear 1 | gear 2 | gear 3 | gear 4 | gear 5 | gear 6 | gear 7 | gear 8 | |
| 2.43 | 3.65 | 5.96 | 8.05 | 9.70 | 14.6 | 23.85 | 32.18 | |||
| Reverse (km/h) | gear 1 | gear 2 | ||||||||
| 3.19 | 12.77 | |||||||||
| PTO | Speed (r/min) | 540/1000 or 634/763 | ||||||||
| Spline size | 8-38*32.8*6 or 6-34.88*28.98*8.7 | |||||||||
