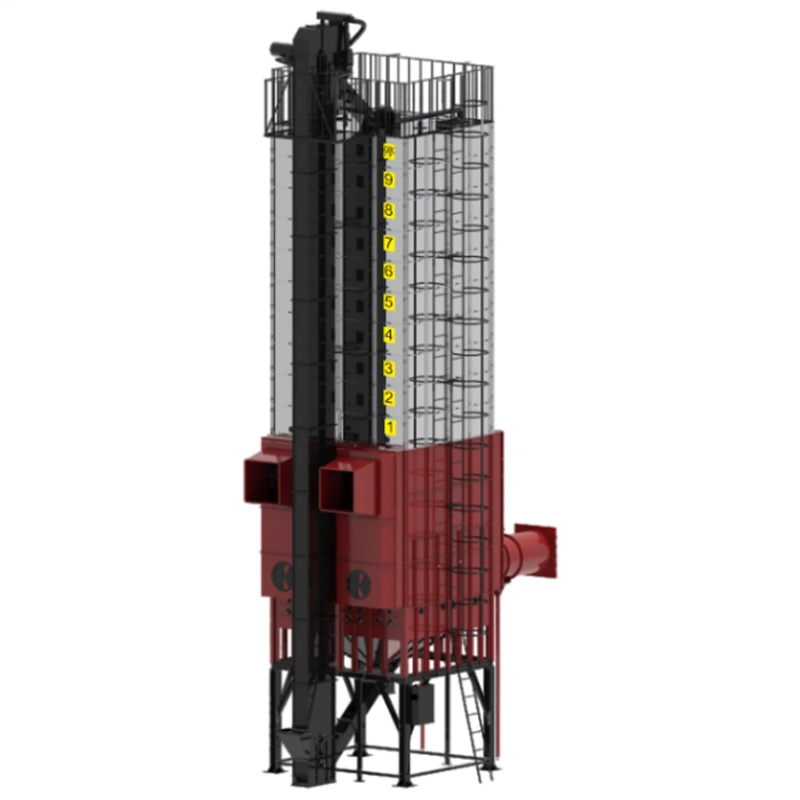

5HHL-40 LSU type Grain Dryer
Structure Features :Batch type, LSU flow, without top & bottom screw conveyor
Main Features:
1- 2*7.5kw Centrifugall fan;
2- High class moisture sensor, testing accuracy ±0.5%；
3- PLC+HMI control;
4- Independent dust removal system at top side;
5- Height 3095mm drying layer, more drying efficiency
6- Special design drum valve, to reduce broken rate;
7- Remote control system(OPTIONAL)
| ITEM | UNIT | SPECIFICATIONS | |
| Model: | 5HHL-40 | ||
| Working type: | BATCH TYPE RECIRCULATING | ||
| Air flow type: | LSU FLOW | ||
| Unit weight | Kgs | 10500 | |
| Dimension (Main body / Total) | Length | mm | 3286 (3627) |
| Width | mm | 2886 (5990) | |
| Height | mm | 12686 (15006) | |
| Holding capacity per batch | Paddy | Ton | 15.0~40.0 |
| Corn | Ton | 15.0~45.0 | |
| Wheat | Ton | 15.0~45.0 | |
| Processing | Paddy | Ton/Hour | ≥2.75 |
| Corn | Ton/Hour | ≥3.0 | |
| Wheat | Ton/Hour | ≥3.0 | |
| Performance | Loading | Ton/Hour | 40.0 (Paddy) |
| Unloading | Ton/Hour | 53.3 (Paddy) | |
| Cycle time | Minute | 60 | |
| Dry rate | (%/Hour) | 0.7~1.5 | |
| Power Consumption | Voltage | V | 3 Phase 380V |
| Convey | kw | 5.8 | |
| Fan | kw | 15 | |
| Total power | kw | 20.8 | |
| Safety device | Thermal relay | ||
| Full grain load alarm | |||
| Temperature controller | |||
| Hot air temperature sensor | |||
| Overload alarm | |||
| Grain temperature sensor | |||
| Residual Current Circuit Breaker(RCCB) | |||
| Abnormal combustion switch | |||
*Specifications are subject to change without prior notice.
