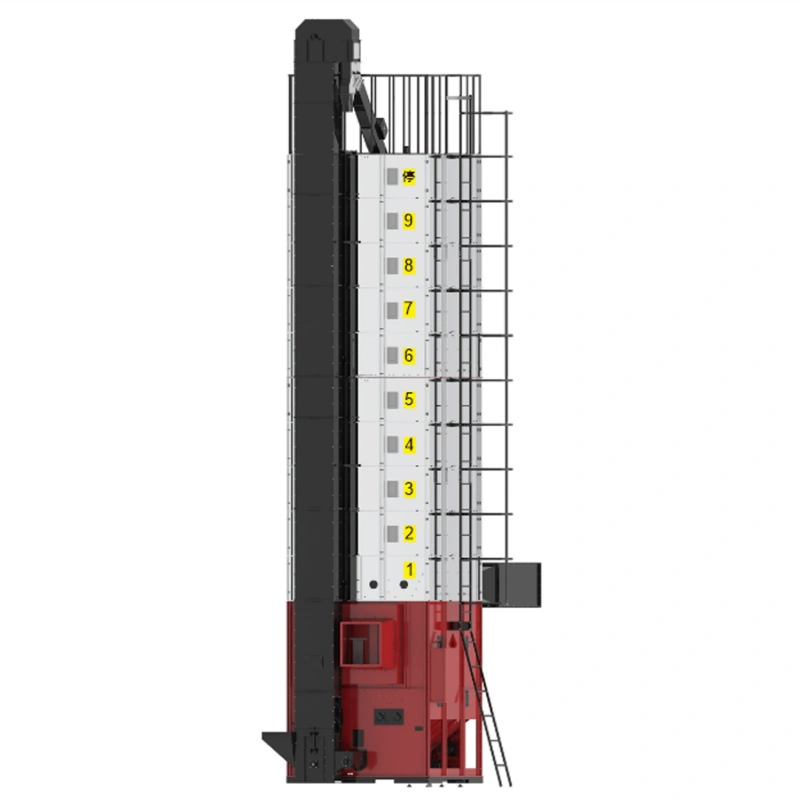

5H-12 Cross-flow type Grain Dryer
Structure Features :Batch type, Cross flow, without top screw conveyor
Main Features:
1- 1*5.5kw centrifugal fan;
2- High class moisture sensor, testing accuracy ±0.5%；
3- PLC+HMI control;
4- Independent dust removal system at top side;
5- Stainless steel mesh plate, thickness 1.2mm;
6- Lower screw blade, stainless steel material, thickness 4mm
7- Height 1200mm drying layer, more drying efficiency
| ITEM | UNIT | SPECIFICATIONS | |
| Model: | 5H-12 | ||
| Working type: | BATCH TYPE RECIRCULATING | ||
| Air flow type: | CROSS FLOW | ||
| Unit weight | Kgs | 3350 | |
| Dimension (Main body / Total) | Length | mm | 2265 (2651.0) |
| Width | mm | 2258 (4725.9) | |
| Height | mm | 8723 (10450.0) | |
| Holding capacity per batch | Paddy | Ton | 4.0~12.5 |
| Corn | Ton | 4.5~13.0 | |
| Wheat | Ton | 4.5~13.0 | |
| Processing | Paddy | Ton/Hour | ≥0.8 |
| Corn | Ton/Hour | ≥0.85 | |
| Wheat | Ton/Hour | ≥0.85 | |
| Performance | Loading | Ton/Hour | 12.0 (Paddy) |
| Unloading | Ton/Hour | 23.0 (Paddy) | |
| Cycle time | Minute | 60 | |
| Dry rate | (%/Hour) | 0.6~1.0 | |
| Power Consumption | Voltage | V | 3 Phase 380V |
| Convey | kw | 4.05 | |
| Fan | kw | 5.5 | |
| Total power | kw | 9.55 | |
| Safety device | Thermal relay | ||
| Full grain load alarm | |||
| Temperature controller | |||
| Hot air temperature sensor | |||
| Overload alarm | |||
| Grain temperature sensor | |||
| Residual Current Circuit Breaker(RCCB) | |||
| Abnormal combustion switch | |||
*Specifications are subject to change without prior notice.
